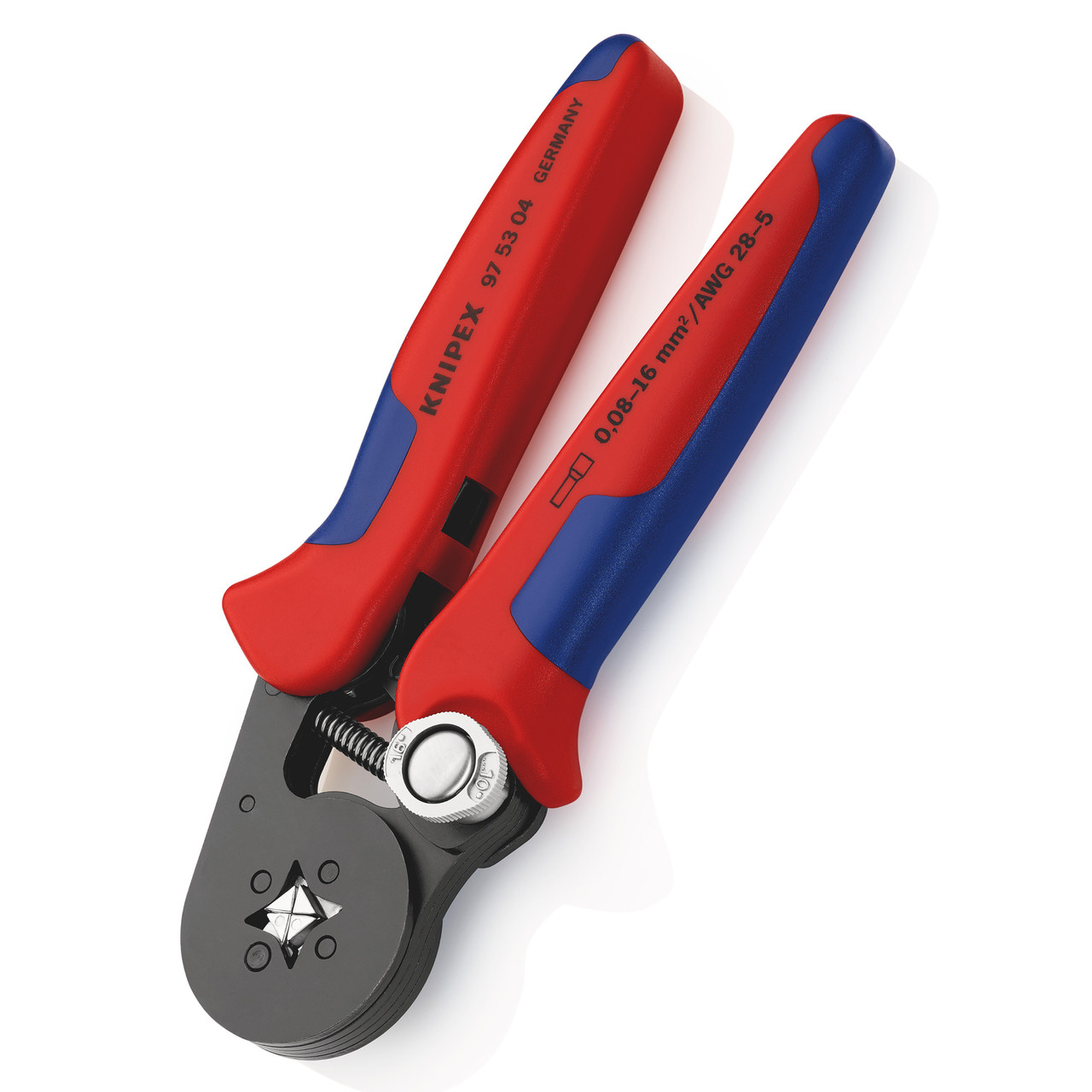

Knipex 97 53 04 SB Self-Adjusting Crimping Pliers for Wire Ferrules 975304SB

The Knipex Self-Adjusting Crimping Pliers Automatically crimp end sleeves between 0.08 mm² and 16.0 mm² correctly The Knipex 975304SB (carded) Crimping Pliers are 180mm in length and make crimping errors almost impossible as they adjust to the right profile size automatically. For reasons of design, it was a challenge to cover the wide capacity range of 0.08 to 10.0 mm² + 16.0 mm² using just one pair of crimping pliers. The result is technically sophisticated and easy to use. Knipex has applied for a patent for the design and operating principle of these crimping pliers. Accurate work is called for when crimping end sleeves (ferrules). Adjustment to the desired size of the end sleeves is automatic with the Knipex 97 53 04 crimping pliers. The user does not need to measure manual force when crimping because, thanks to the integral lock with release mechanism, the right amount of pressure automatically reaches the end sleeve. The pliers are optimally set (calibrated) in the factory. Hand-friendly working, even with large conductor cross-sections up to 16 mm². The transmission ratio of these crimping pliers has been well-designed and is therefore hand-friendly; it provides a comfortable grip width. A toggle lever effectively supports manual force. This enables conductors with large cross-sections to be assembled well even in the case of extensive installations – also with twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 8. The conductors are reliably connected to the end sleeves using a square profile – in all designated sizes. Features: Narrow handle width and improved ergonomics Square compression now additionally also for wire ferrules up to 16 mm² Square compression for ideal contact surfaces in the clamp connection Suitable in particular for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12 For crimping wire ferrules according to DIN 46228 parts 1 + 4 Self-adjustment to the size of wire ferrules required Repetitive, high crimping quality due to integral lock (self-releasing mechanism) Tools have been set precisely (calibrated) in the factory Optimum transmission of force thanks to toggle lever for fatigue-reduced operation Handy shape and low weight provide high operation comfort Chrome vanadium electric steel in special quality, oil-hardened Specification: Part number: 975304SB Pliers: burnished Handles: with multi-component grips Dimensions; 180 x 77 x 21 mm Applications: Wire ferrules Capacity in square millimetres: 0.08 — 10 / 16 mm² Number of crimping positions: 1 AWG: 28 — 6 Weight: 0.459kg
