Harlequin GRP12 Hydroclear Sewage Treatment System (up to 12 person) | HGRP12/EC

This product is delivered directly from the supplier, lead times vary.

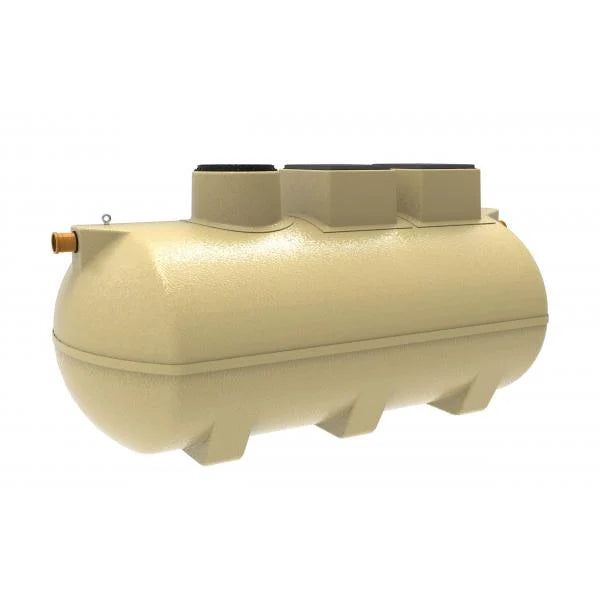

The HydroClear GRP12 (HGRP12) is expertly crafted from high-strength glass-reinforced polyester (GRP) to efficiently treat wastewater from bathrooms, toilets, laundry, and kitchens. Once processed, the wastewater is safe and clean enough to be discharged directly into natural watercourses like rivers or streams, or into drainage fields. Boasting a lifespan of over 20 years, the HGRP12 offers long-term reliability and peace of mind.

Compact and robust, the HGRP9 achieves an impressive 97.5% pollutant removal rate with minimal maintenance. Its ease of installation, cost-effectiveness, and quiet operation make it ideal for a variety of applications.

Available in both gravity and pumped outlet models, the HGRP9 features an external compressor housed in a weatherproof enclosure for optimal performance. An internal compressor option is also available. This slim-profile system includes a 2-year warranty (valid upon product registration on our website) and is fully certified for use in the UK, meeting EN12566-3 standards.

HydroClear Model: HGRP12

Population Served: 10 to 9

Max. Hydraulic Load (litres /day): 1800

Organic Load (g BODs/day): 620

Total Capacity (litres): 6545

Length (mm): 3630

Width (mm): 1880

Height to Ground Level (mm): 1810

Empty Plant Weight (kg): 400

Energy Usage (kWh/day): 2.5

Blower rating (watts): 105

Desludging Interval (months): 12

Compliant with EN-12566 part 3: Yes

Inlet Depth (mm): 500

Outlet Depth (mm): 575

Installation Depth (mm): 1810

Pipe Diameter: 110
