Trend Hot Rod Jig Pk 1 HR/JIG

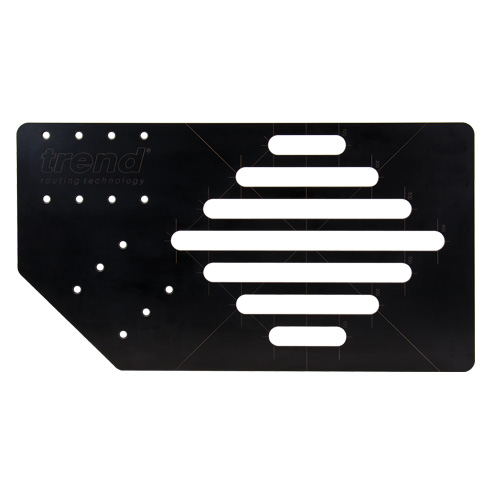

Routing Jig For Routing Grooves In Solid Work Tops To Accept 12Mm Diameter Hot Rods. Hot Rods Prevent Heat Damage To Work SurfaceAccepts Hot Rods Of Size 100Mm 200Mm 300Mm And 400Mm.Made From 12Mm Hardwearing Cnc Machined Compact Grade High Pressure Laminate.Grooves At 50Mm Pitch.Series Of Peg Holes At 50Mm Increments Too Allow Recess At 90 Degree To Work Surface Or At 45 Degree.Use Ref. C054Ax1/2Tc R6.35Mm Cove (12.7Mm Diameter) For Standard 12.7Mm Rods Or Ref. C053Cx1/2Tc R6Mm Cove (12Mm Diameter) For 12Mm Rods. Use Other Cove Cutters For Other Rod Diameters. It Is Desirable To Recess The Rods Into The Worktop By Approximately One Third To One Half Of The Rod Diameter.Hot Rods Not Included.PTDTREDIRHRJIG
