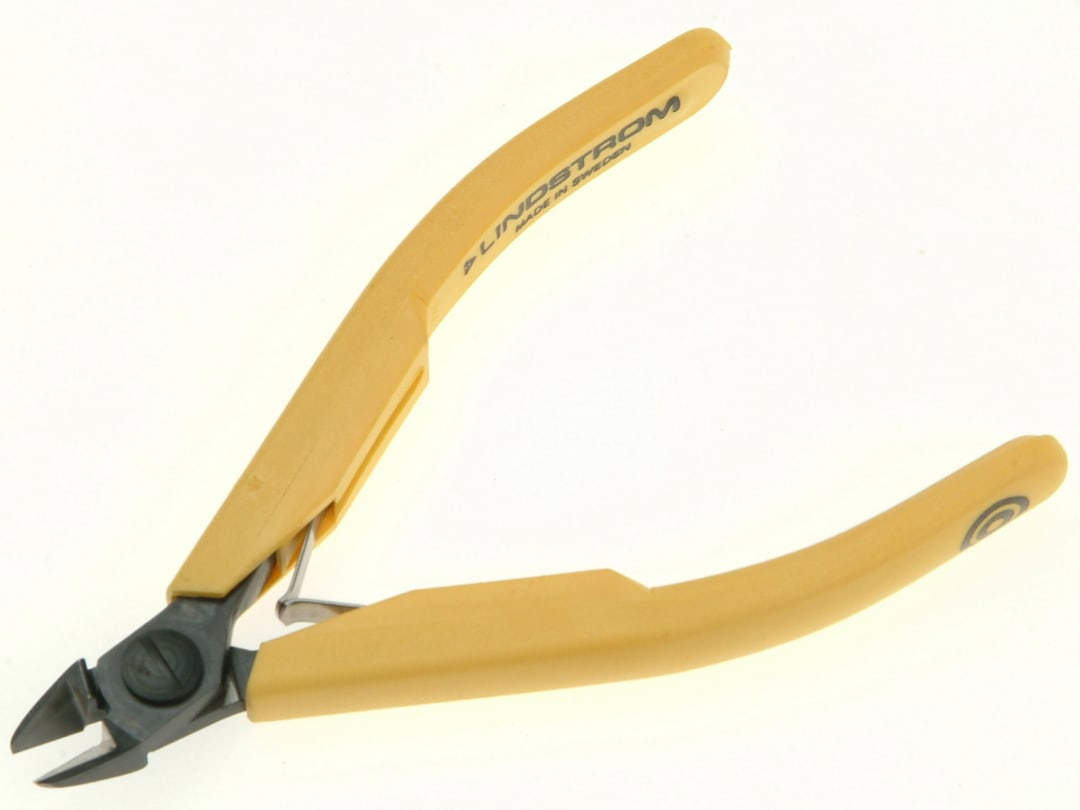

Lindstrom Diagonal Cutting Ultra Flush Cut Nipper 110mm 8142

Length (A): 110 mm (4.3/8 in). Blade length (B): 10mm (0.39 in). Head width (C): 10mm (0.39 in). Head depth (D): 6mm (0.24 in). Tip width: (F): 0.8mm (0.03 in).Cutting Capacity: 0.1-1.0mm. Cutting edge: Ultra flush. The Ultra flush cutter virtually eliminates the pinch that other cutters make. The cutters configure two flat planes, with a barely discernible line separating each of these planar surfaces. They are perfect for use in close tolerance electronic and medical device assembly, where concerns about final lead-end configuration and mechanical shock transmission are a top priority.
