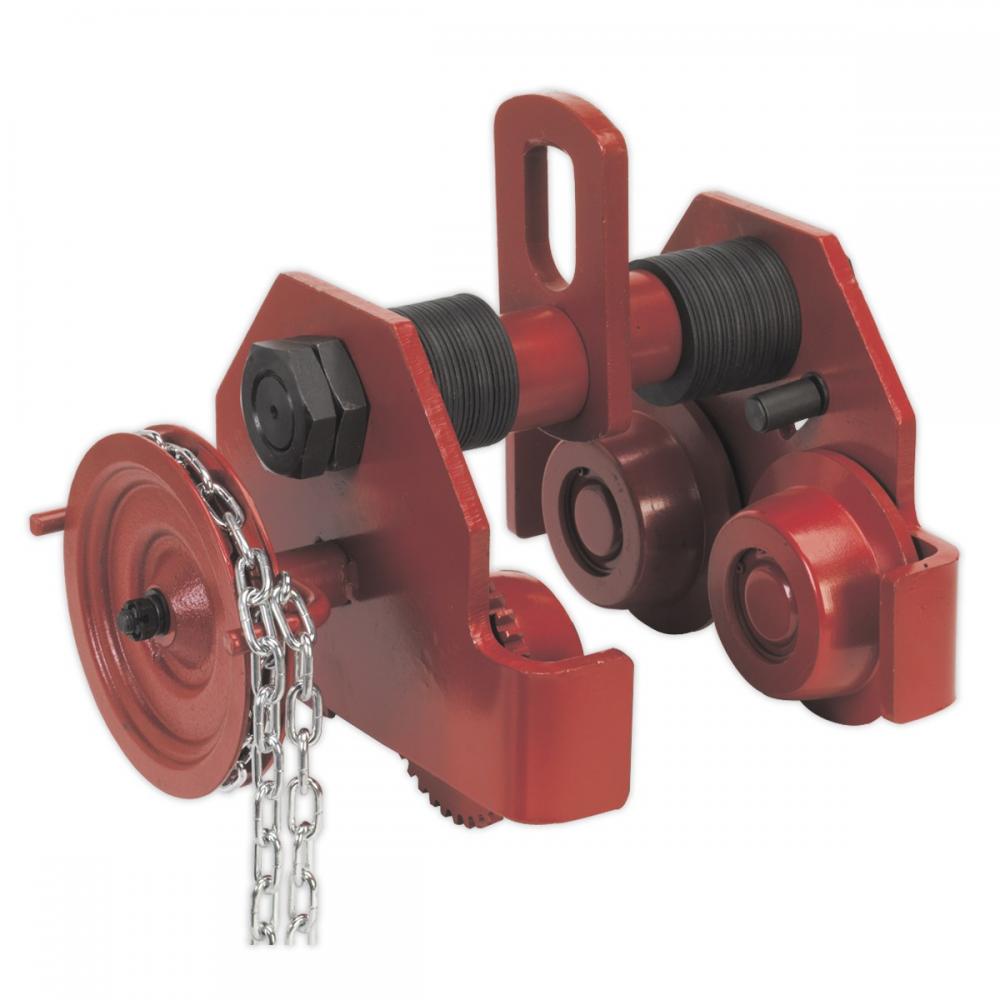

Sealey PT3000G Trolley Geared 3 Tonne

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.3 Tonne Geared Trolley• Suitable for use with our lever hoists or chain blocks.• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.• Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.• Model No. PT3000GModel No: PT3000G:Brand: Sealey:Nett Weight: 41kg:Capacity: 3000kg:Test Load: 4500kg:Track Width Adjustable Range: 76-203mm:Minimum Curve Radius: 1500mm:A: 344mm:B: 250mm:C: 180mm:D: 150mm:E: 200mm:Weight: 41kg:Minimum Standard I-Beam Dimensions (D x W x Web): 200 x 100 x 7mm:Maximum Distance Between Spans: 2700mm:Maximum Standard I-Beam Dimensions (D x W x Web): 850 x 150 x 9mm:Maximum Distance Between Spans: 4500mm:Refer to catalogue for diagram: :PTDSEAPT3000G
