Moore & Wright CSME12 Csme12 Precision Combination Set 300Mm/12In

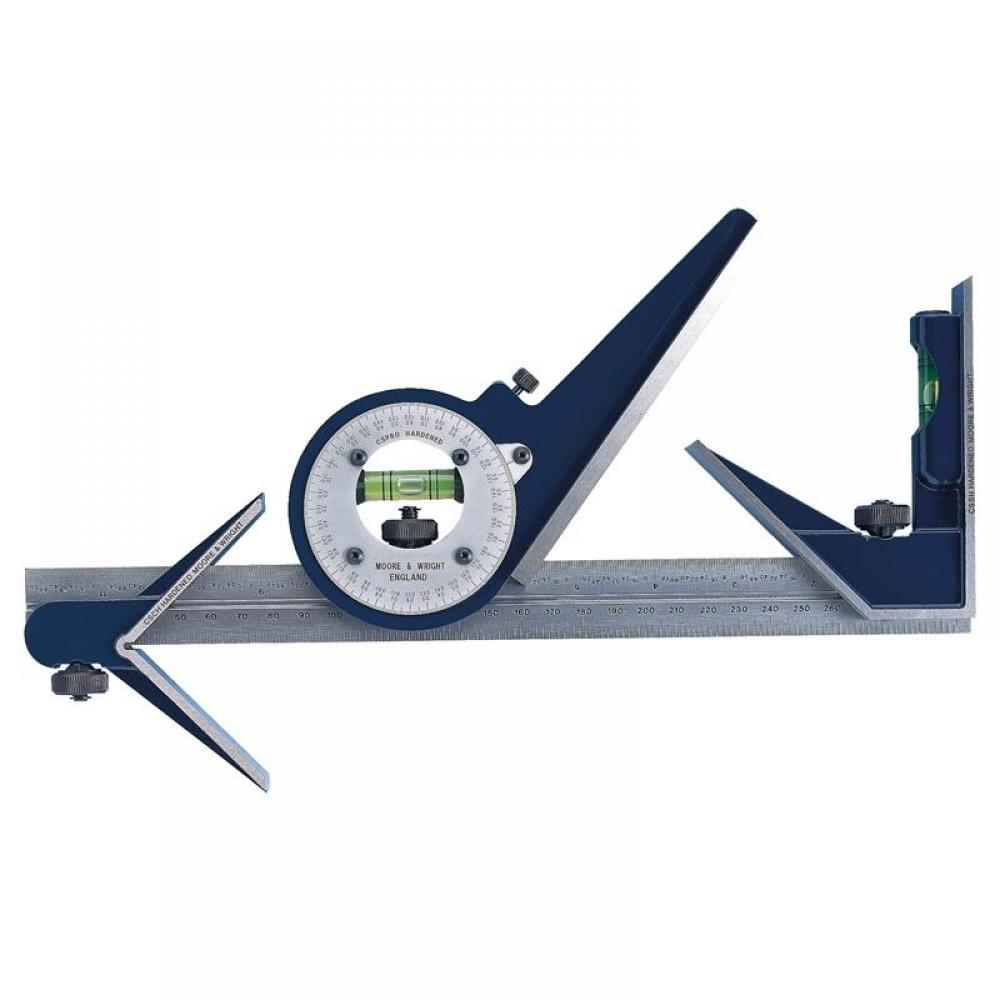

The Moore & Wright CSM Precision Sets are supplied with a rule (graduated both sides) Protractor head Square head and Centre head. The datum faces are fully hardened and ground to resist wear. There is a centrally mounted protractor vial allows unrestricted viewing and the protractor has full 360° scale plate graduated 0° - 180° - 0°. The protractor is also fitted with a satin chrome scale plate. The precision rules have been fully hardened and tempered with deeply etched graduations on both sides for ease of reading and long life. It has a unique rule clamp that allows positive location and clamping and a clipped corner on rule to maximise capability Square Head offers the following fixed angles: 15° 30° 45° 60° 75° and 90°. Centre Head offers a fixed 90° angle for finding the centre of round bar stock up to 120mm diameter. MAWCSRM600 & MAWCSRME24 are rules specifically designed for use with the Combination Sets (MAWCSM300 & MAWCSME12).The Moore & Wright CSME12 Precision Combination Set is a full set including 300mm/12in rule (graduated both sides) Protractor head Square head and Centre head. Measurements: Metric graduations: in 0.5mm numbered every 10mm. Imperial graduations: 32nds and 64ths numbered every 1/8in.PTDMAWCSME12
