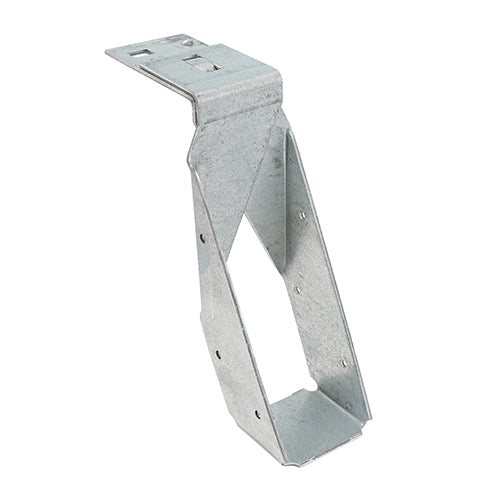

Single Piece Masonry Hanger – Galvanised – 47 x 175mm (10 Pack)

Designed to support 47 x 175mm timber joists from brick or block walls. This single piece masonry hanger can be built into new masonry or used for renovation work by raking out existing brickwork, giving a secure joist bearing and a reliable fixing point for floor and roof structures.. Key Features. Designed for supporting timber joists from brick or block walls.. Galvanised / pre-galvanised steel for corrosion resistance.. Conforms to Eurocode 6 and service class 2.. Manufactured to BS EN 845-1:2013+A1:2016.. Straight top flange design.. No welds for strong, consistent construction.. Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber.. 6 nail holes (3.75mm) for secure fixing.. Safe working load: 5.4kN.. Supplied as a single unit (MOQ 10) – ideal for site stock and renovations.. Typical Applications. Supporting floor joists built into brickwork and blockwork.. New-build masonry where hangers are built-in during construction.. Refurb work where masonry is raked out to install the hanger.. General timber-to-masonry support where a consistent joist bearing is required.. Specifications. Product code. 47175MH. Joist size (W x H). 47 x 175mm. Width (W). 47mm. Height (H). 165mm. Bearing (B). 75mm. Thickness. 2.4mm. Nail holes. 6 (3.75mm). Safe working load. 5.4kN. Characteristic value. 9.7kN (Eurocode 6). Material. Carbon Steel. Finish. Galvanised. Corrosion rating (1–5). 2 – Occasionally damp/wet, rural and sheltered areas. Pack type. Unit. Pack quantity. 1 Each. Packs Received. 10
