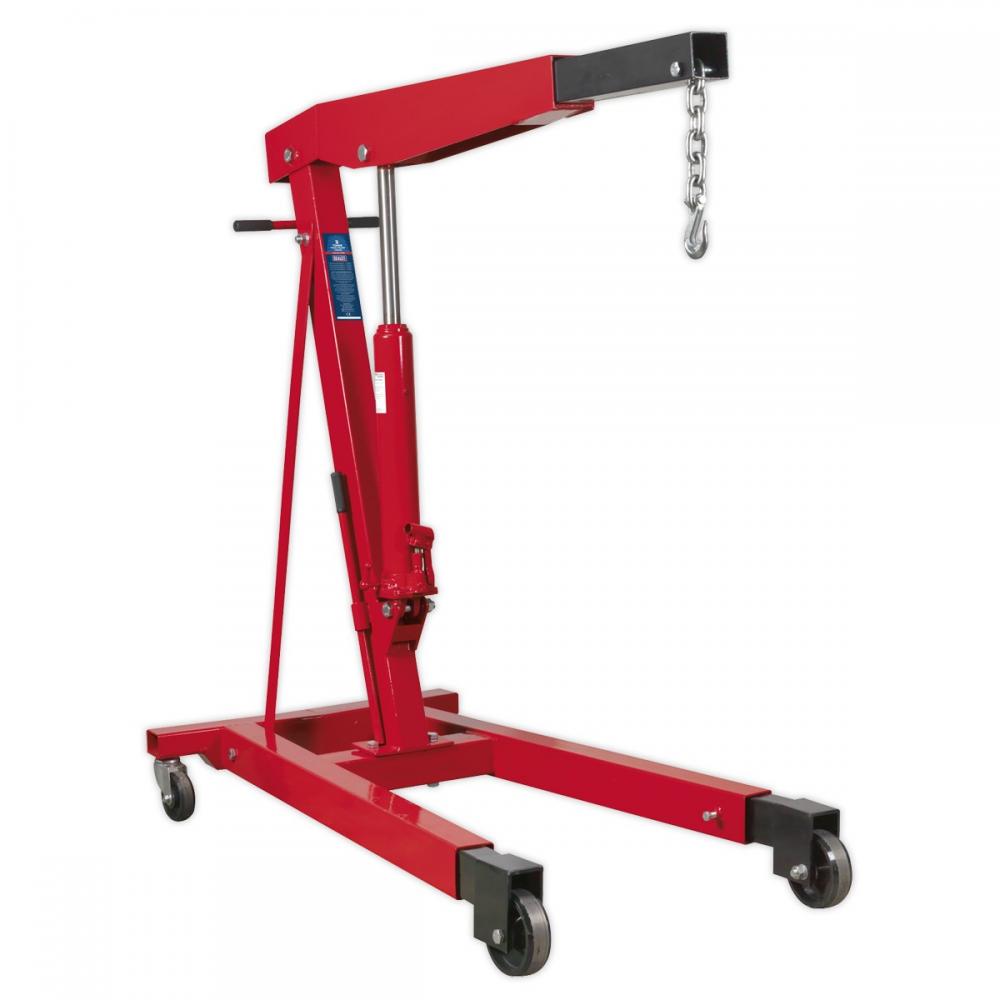

Sealey PH30 Fixed Frame Engine Crane With Extendable Legs 3 Tonne

Weighs 155kg and is perfect for heavy commercial industrial and workshop use. Extendable heavy-duty legs for improved stability particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump access from side for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.3 Tonne Fixed Frame Engine Crane with Extendable Legs• Lifts 3000kg at 1200mm jib extension.• Heavy-duty castors.• Side pump access with removable handle.• Extendable legs for improved stability.• Delivered in knock-down form.• Some self-assembly required.• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.• Model No. PH30Model No: PH30:Brand: Sealey:Height Jib Down: 1610mm:Height Legs Folded: n/a:Height of Frame: 195mm:Length of Jib Position 1: 1200mm:Length of Jib Position 2: 1400mm:Length of Jib Position 3: 1610mm:Length of Jib Position 4: 1820mm:Length of Jib Position 5: n/a:Lifting Capacity in Position 1: 3000kg:Lifting Capacity in Position 2: 2000kg:Lifting Capacity in Position 3: 1500kg:Lifting Capacity in Position 4: 1000kg:Lifting Capacity in Position 5: n/a:Max. Lift Ht at Jib Position 1: 1880mm:Max. Lift Ht at Jib Position 2: 1970mm:Max. Lift Ht at Jib Position 3: 2010mm:Max. Lift Ht at Jib Position 4: 2220mm:Max. Lift Ht at Jib Position 5: n/a:Nett Weight: 155kg:Note: Legs Extended:Rear Width: 780mm:Width Front Frame: 855mm:Width Inside Front Frame: 700mm*:PTDSEAPH30
