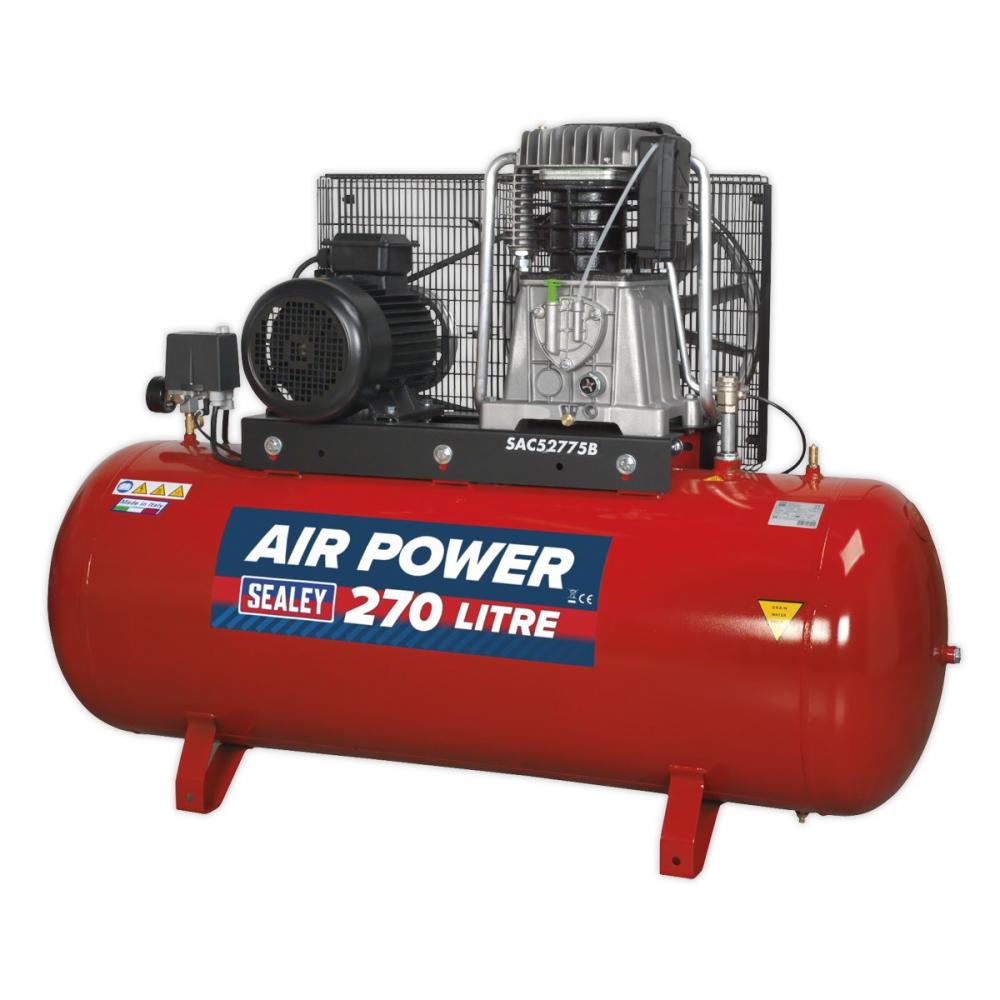

Sealey SAC52775B Air Compressor 270L Belt Drive 7.5Hp 3Ph 2-Stage With Cast Cylinders

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage single phase model. Pump features heavy-duty full cast cylinders capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification test certificates and operating/maintenance manual.270L Belt Drive Air Compressor 7.5hp 3ph 2-Stage with Cast Cylinders• Air Displacement: 29.7cfm(841L/min).• Maximum Free Air Delivery: 21.5cfm(609L/min).• Maximum Pressure: 145psi(10bar).• Heavy-duty 3-phase compressor suitable for the professional workshop.• 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage single phase model.• Pump features heavy-duty full cast cylinders capped by an alloy head for improved heat dissipation and long-life.• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.• Supplied with full CE certification test certificates and operating/maintenance manual.• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.• Model No. SAC52775BModel No: SAC52775B:Air Displacement cfm(L/min): 29.7(841):Brand: Sealey:Maximum Free Air Delivery cfm(L/min): 21.5(609):Maximum Pressure: 145psi(10bar):Minimum Rated Supply: 32A:Motor Output: 7.5hp:Nett Weight: 143kg:Oil Capacity: 1.57L:Outlet: 1/2BSP Female Tap:Phase: 3ph:Receiver Capacity: 270L:Size (W x D x H): 1550 x 510 x 1070mm:Speed: 1280rpm:Supply: 415V/32A:PTDSEASAC52775B
