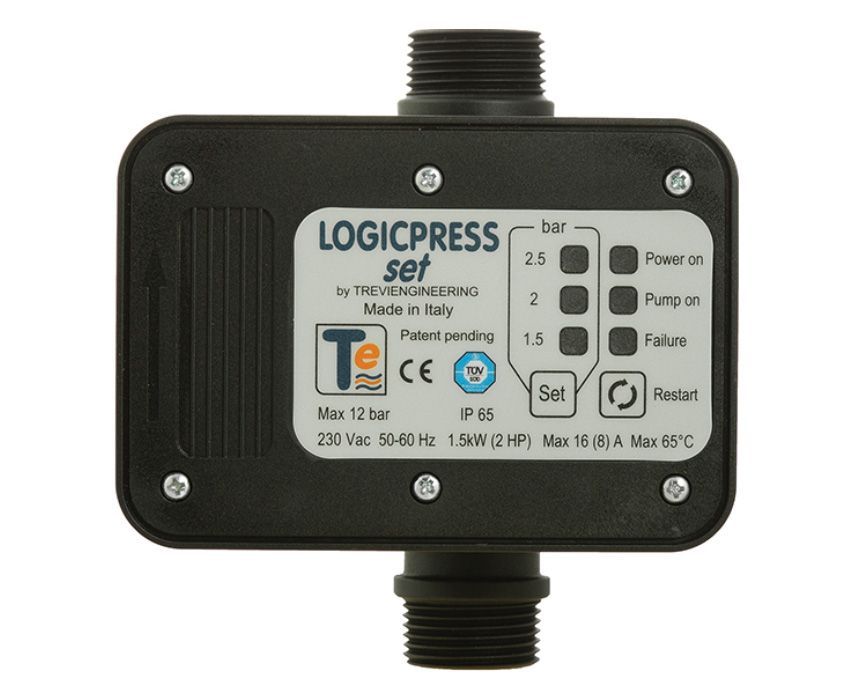

Pressure Switch Flow Controller Original Organics

These controllers are electronic pressure switches for submersible pumps and for surface mounted pumps, which have sufficient rated pressure. It contains dry running protection and non return valves on all models, some also includes the following features; external reset, pump status LED, auto-reset and adjustable cut in pressure. Standard features are: • integral dry run pump protection • external re-set switches • power black-out auto reset • pump status LEDs • integral non-return valves • suitable with 400v 3PH (with a contactor) • IP65 View Pressure Switch Flow Controller instructions Model Pressure Switch Flow Controller Outlet (mm) 1" Volts (V) 230 Inlet (mm) 1" Max pressure (bar) 12 Temp (max C) 65 Amps 8 Start pressure (bar) 1.5 - 2.0 - 2.5 Width (mm) 140 Length (mm) 190 Height (mm) 110 Dry weight (kg) 1.01 Packing weight (kg) 1.12
