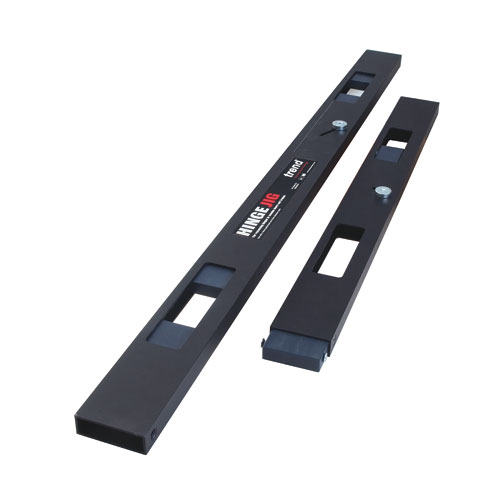

Trend Hinge Jig A - Two Piece Jig For Quick Accurate Repeatable Fitting Of Hinges To Doors And Frames Pk 1 H/JIG/A

The Two Part Contractor Hinge Jig Is A Portable Template Set Designed For Recessing Hinges In Wooden Doors & Frames Using A Plunge Router.It Is Easy To Use With Minimal Setting-Up Time Completing The Job Both Accurately & Quickly.Used On-Site & In Joinery Shops To Increase Productivity With Excellent Results. Four Apertures For Fire Door Requirements. No Need For Marking Out In The Conventional Way. Quick & Simple To Set-Up As The Hinge Is Used As The Pattern.Clean & Accurate Recesses Are Achieved Every Time. Suitable For Timber Based Doors & Square Butt Hinges.Can Be Used On Both Inside And Outside Doors Rebated Frames And On Maximum 25Mm Thick Fixed Stops.Use With A Light Duty Plunge Router With 1/4 Inch Collet.Long Reach Router Cutter Required 12Mm Diameter With 70Mm Overall Length.Angled Position Slots To Prevent Creep.Unibase May Be Needed.T4Ek Router Requires A Ref. Unibase Or Special Guide Bush Ref. Gb/T4/160.PTDTREDIRHJIGA
