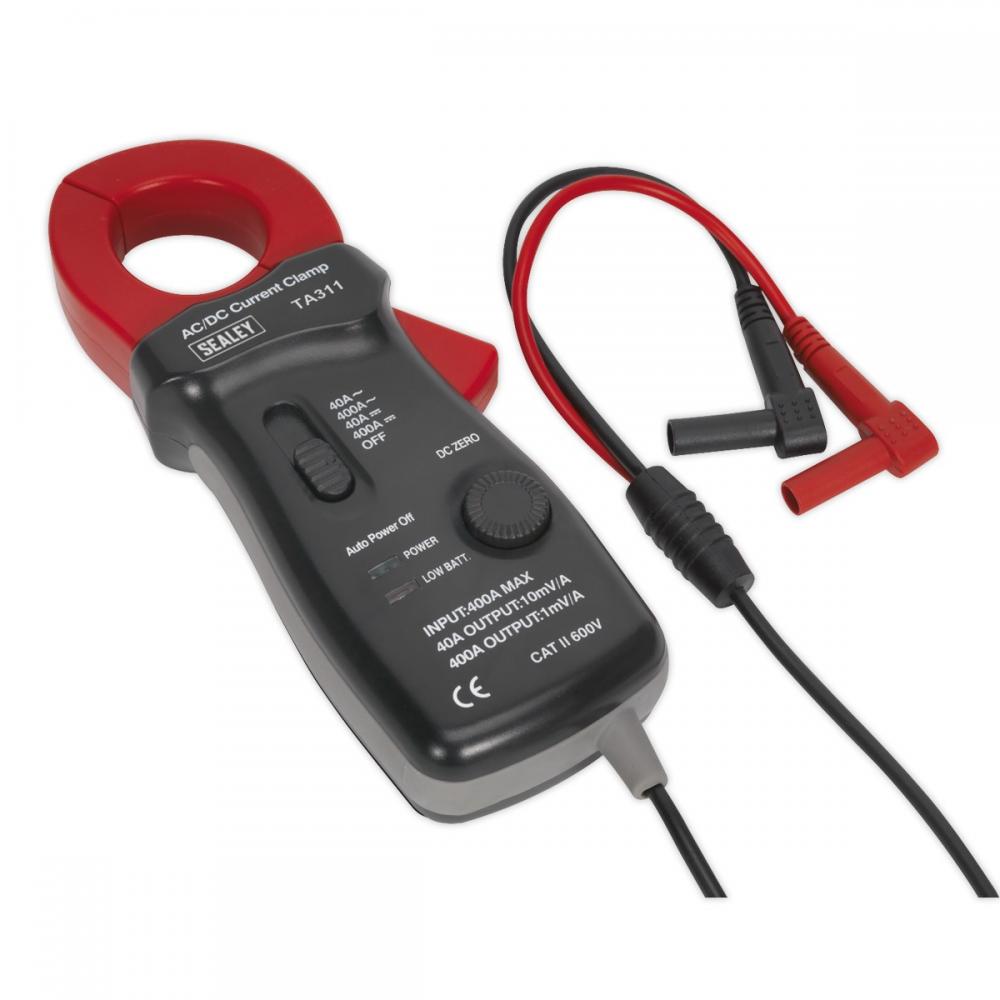

Sealey TA311 Current Clamp 40A/400A Ac/Dc - Ø28Mm

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.Ø28mm 40A/400A AC/DC Current Clamp• Designed for use with a standard multimeter and measures current draw from vehicle components in situ.• Suitable for measuring both AC and DC current without breaking into the circuit with a 40A and 400A setting for accurate measurement.• Features a Ø28mm clamp ideal for testing wire bundles.• Fitted with 4mm banana connectors and supplied in storage pouch.• Powered by 9V battery (supplied).• Can also be used with an oscilloscope using a suitable BNC conversion adaptor.• Model No. TA311Model No: TA311:Brand: Sealey:Nett Weight: 0.36kg:TA311 Captured Conductor Size: Ø20mm maximum:Low Battery Indicator: LED red:Operating Temperature: 0DegC to 50DegC.:Storage Temperature: -15DegC to 50DegC.:Battery Type: 9V DC:Typical Battery Life: 80hrs (alkaline):Weight: 240g:TA311 Dimensions (H x W x D): 175mm x 70mm x 38mm:Output Connection: Banana plugs (red & black):40A (output: 10mV/A): DC or rms AC for 200mV or 400mV range of the multimeter.:400A (output: 1mV/A): DC or rms AC for 400mV range of the multimeter.:PTDSEATA311
