Hush Lag 5/25 Acoustic Barrier Sheet

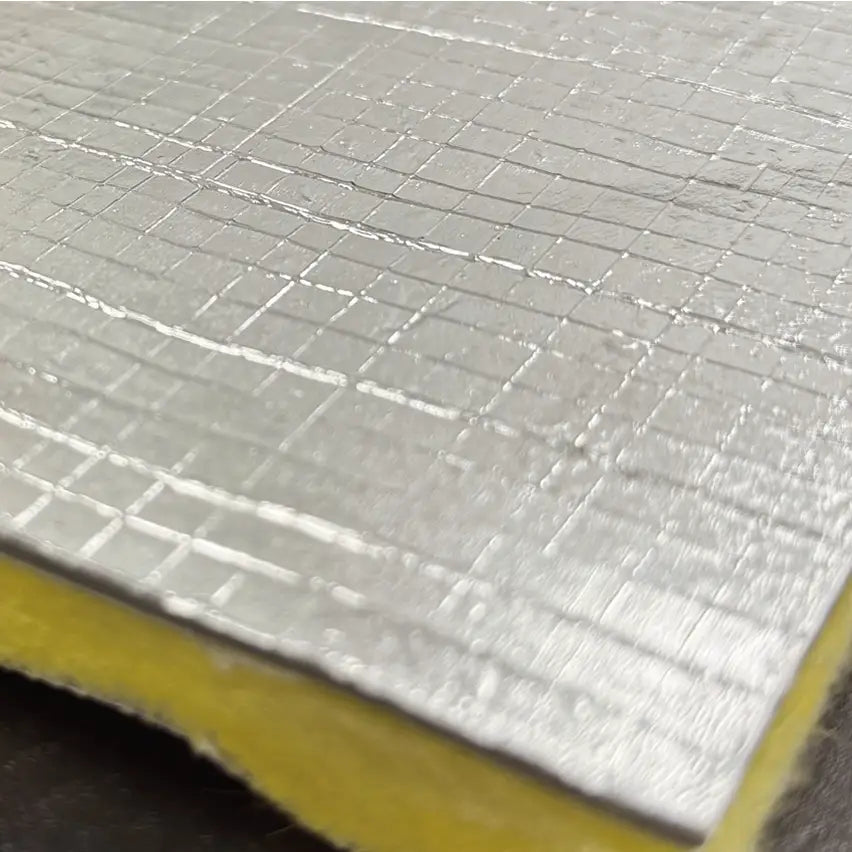

Hush Lag 5/25 is a high-performance acoustic laminate designed to provide effective sound attenuation across a wide range of building and mechanical service applications. Size on the Roll 2 x 1.2 x 25mm Manufactured as a stable tri-layer construction, it combines a controlled density mineral fibre layer, a flexible high-mass acoustic barrier and a reinforced foil facing. The integrated design delivers both mass and isolation within a single material, removing the need for a separate decoupling layer. The outer foil finish provides additional durability along with flame and vapour resistance. The fire performance of the product is tested as B, s2, d0 (Test Ref: 27/06787B3/06/25). This makes the material suitable for use in environments where this level of fire performance, acoustic performance and mechanical protection are required. TECHNICAL DATA DESCRIPTION DATA UNIT TOLORANCE TEST METHOD Apparent Density 363 Kg/m3 +/- 10% DIN EN 1602 Reaction to Fire B, s2, d0 (full composite product) - - BS EN ISO 11925-2 BS EN 13823 Nominal Weight 5.54 Kg/m2 +/- 10% - Nominal Thickness 15.25 (after compression when stitched) mm +/- 20% - Static Operating Temp Range 20 – 93 (short exposure at extremes) ◦C - Internal Colour Silver/yellow (front/back) - - -
