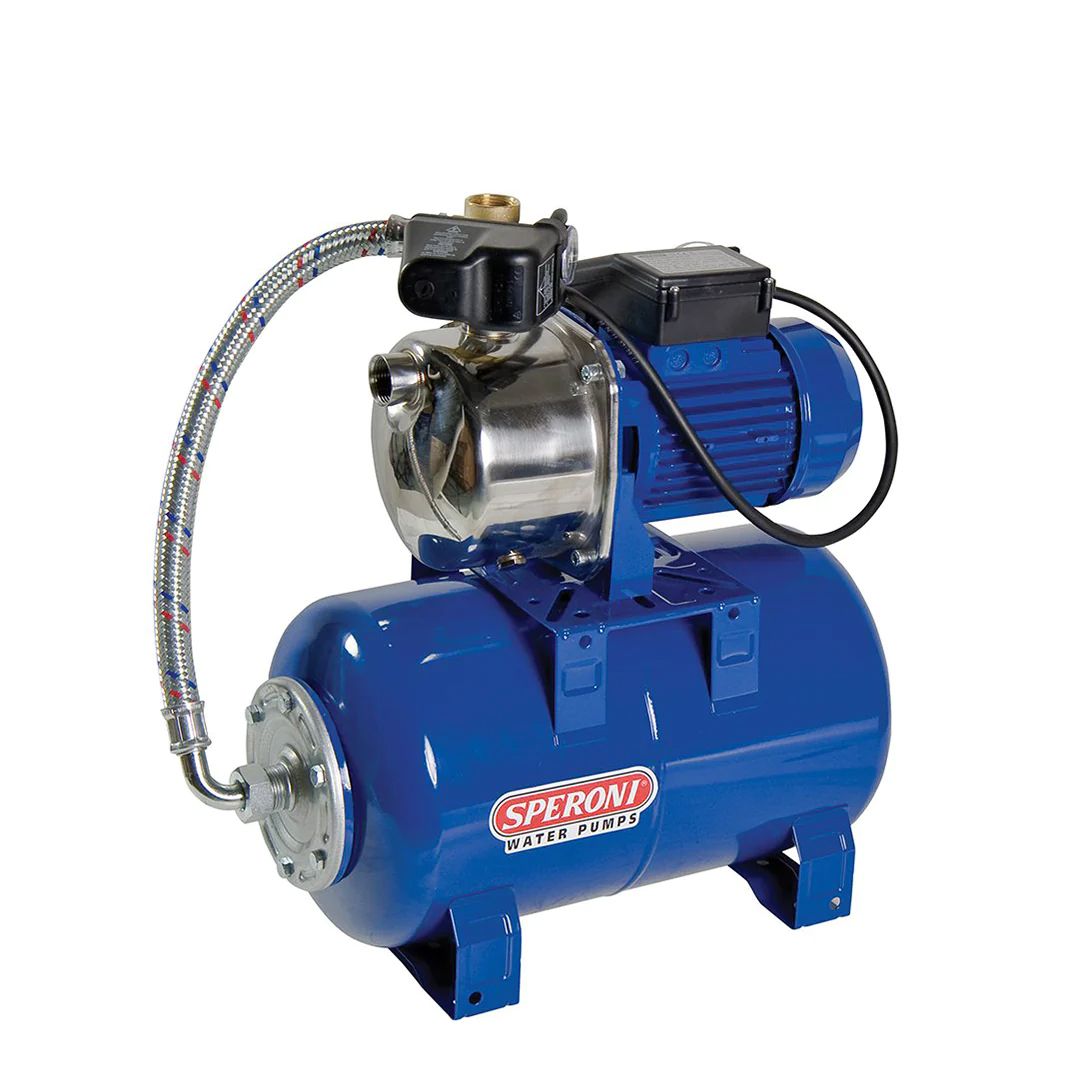

CAM88/25 230V Pump Booster Set Blue

The CAM88/25 Booster Set Pump incorporate self-priming “jet" pumps with pressure vessels (fitted with butyl diaphragms), pressure gauges, adjustable pressure switches and non-return valves ready assembled for installation. The pumps are fitted with thermoplastic venturis and impellers. They have stainless steel shafts, fitted with carbon ceramic mechanical seals, and have IP44 rated motors. The KS features a thermoplastic pump casing and a 22 litre steel pressure vessel, while the CAM features a 304 stainless steel pump casing and a 25 litre steel pressure vessel. They are designed for pumping clean water only at a maximum temperature of 35ºC. Capable of 8 metre suction lifts. Suitable for domestic water boosting, pressurised water supply to mobile toilets and shower blocks, irrigation and for wash-down. The CAM is available with an optional steel protection frame for portable use. Model: CAM88/25 Inlet (mm): 1" Outlet (mm) 1" KW: 0.75 Volt (v): 110V Flow (l/min): 60 Head (mtrs): 32 Switch Pre-Set (bar): 1.6 (on) 3.2 (off) Vessel Size (Lts): 25 Width (mm): 270 Length (mm): 530 Height (mm): 540 Dry weight (kg): 17 Technical Data Outlet (BSPF): 1" Inlet (BSPF): 1" Motor output (kW): 0.75 Max head (m): 32 Phases: 1 Max flow (I/min): 60 Vessel size: 25 Materials: Pump body: S/S 304 Impeller: Technoplastic Diffuser: Technoplastic Mechanical Seal: Carbon ceramic/NBR Shaft: S/S 304 Motor support: Cast aluminium Vessel x size: Steel x 25 ltr Membrane: Butyl
