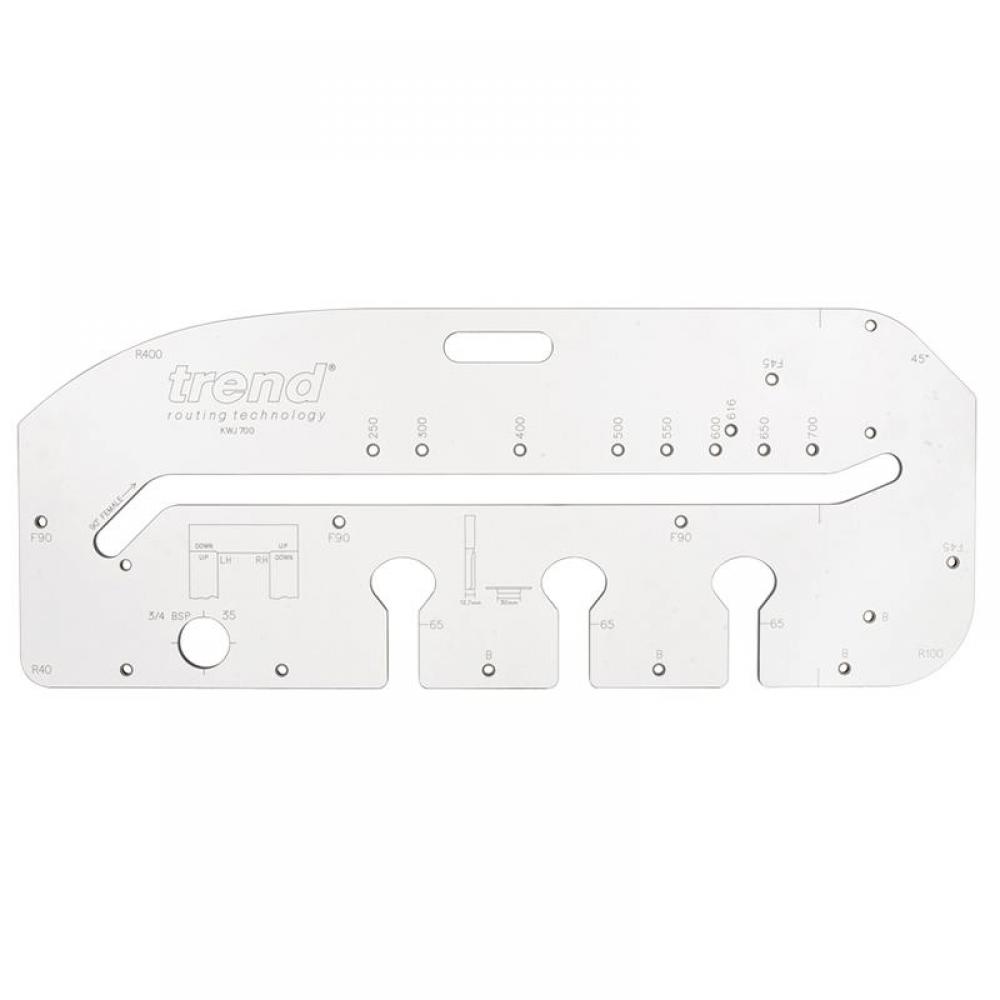

Trend KWJ700 Kwj700 Kitchen Worktop Jig 700Mm

The Trend Kitchen Worktop Jig is a hard-wearing solid laminate 12mm thick jig that enables cutting both parts of the joint in 15 minutes including setting up. The jig has the following features: Left and right hand corners 400mm radius peninsular joint 45° end cut with slight radius 45° trade corner 40mm radius corner 35mm kitchen door hole and 3/4inch BSP hole for mixer taps. Engraved lines for 65mm bolts and worktop cross-cut. 6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit and 3 point pin contact to ensure ease of setting up.The KWJ700 has fixed lengths for 250mm 300mm 400mm 500mm 550mm 600mm 616mm 650mm and 700mm worktops. Length: 985mm.Width: 390mm.Thickness: 12 mm.Weight: 5.4 kg.End Cut: 45°.Corner Radii: 40mm 100mm and 400mm.Corner Mitre Joint: 45°.Female cut material width loss: 35 mm.PTDTREKWJ700
