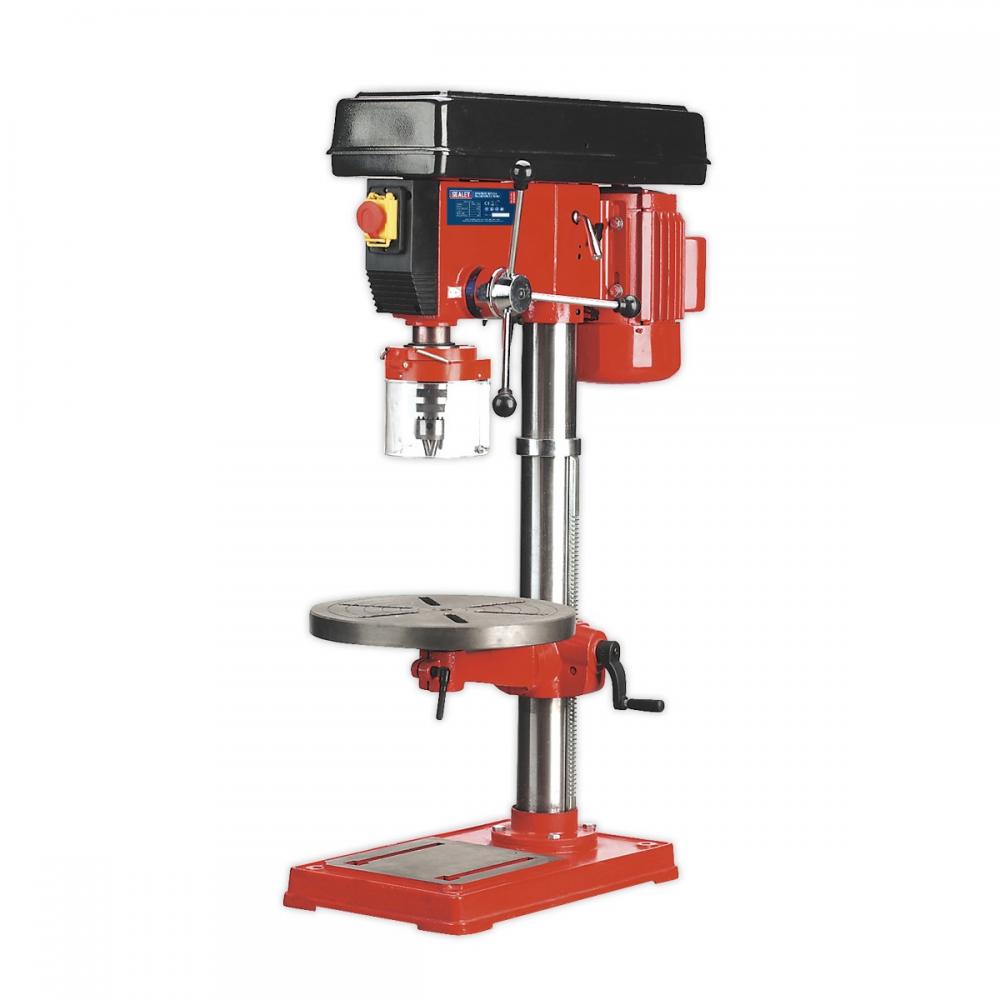

Sealey GDM180B Pillar Drill Bench 16-Speed 1085Mm Height 750W/230V

One of a comprehensive range of bench pillar drills to suit light industrial agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Fully guarded and suitable for educational use. Fitted with no-voltage switch and locking cover to prevent accidental starting. Access to drive belts is denied during operation by mechanical protection. Optional Mortise attachment is available.16-Speed Bench Pillar Drill 1085mm Height 750W• Suitable for industrial agricultural and woodworking applications.• Fully guarded and suitable for educational use.• Fitted with rack and pinion feed shafts with preset depth control for repetitive work.• Fitted with no-voltage switch and locking cover to prevent accidental starting.• 20mm(3/4) Capacity chuck No. MT3.• Height: 1085mm. • Spindle Centre to Column: 216mm.• Motor Power: 550W Input Power: 750W.• Column Diameter: 80mm.• Spindle Travel: 80mm.• Weight: 80kg.• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.• Model No. GDM180BModel No: GDM180B:Base Size: 520 x 320mm:Brand: Sealey:Collar Diameter: 75mm:Column Diameter: 80mm:Drilling Capacity (Chuck Size): 20mm:Maximum Distance Spindle to Base: 685mm:Maximum Distance Spindle to Table: 495mm:Motor Power (Start): 550W(750W):Nett Weight: 70kg:Number of Speeds: 16:Overall Height: 1085mm:Speed Range: 120-3000rpm:Spindle Centre to Column: 216mm:Spindle Nose Taper: MT3:Spindle Travel: 80mm:Supply: 230V:Swing: 432mm:Working Base Surface Size: 240 x 280mm:Working Table Surface Size: Ø355mm:PTDSEAGDM180B
